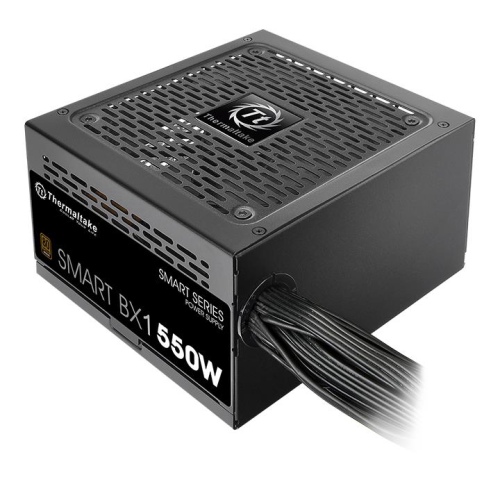

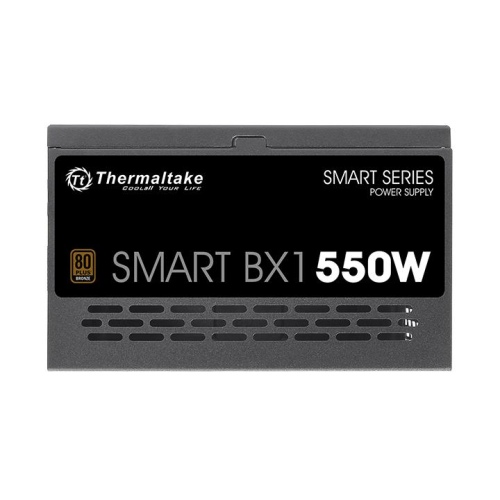

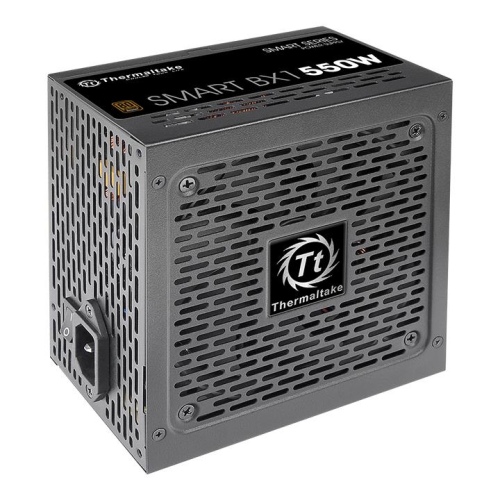

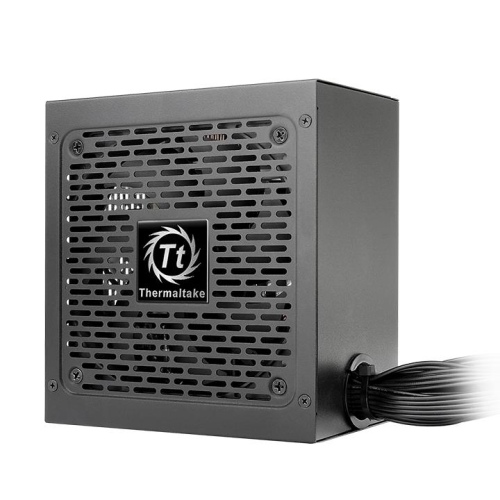

Fuente Thermaltake SMART BX1 SPD-550AH2NKB
| P/N | PS-SPD-0550NNFABx-1 |
|---|---|
| watts | 550W |
| RGB Fan | No |
| Form Factor | ATX |
| Model |
SPD-550AH2NKB | SPD-550AH2NLB | SPD-550AH2NCB |
| Type | ATX 12V v2.3 and EPS v2.92 |
| Max. Output Capacity | 550W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 70% of full load |
| Input Current |
10A max.| 5 – 10A | 8A max. |
| Input Frequency Range |
50Hz - 60Hz| 47Hz - 63Hz | 47Hz - 63Hz |
| Input Voltage | 100V – 240V~ |
| OPERATING TEMPERATURE |
5°C to + 40°C | 5°C to + 40°C | 0°C to + 40°C |
| Operating Humidity | 20% to 85%, non-condensing | 20% to 85%, non-condensing | 20% to 90%, non-condensing |
| Storage Temperature | -40°C to + 55°C | -40°C to + 55°C | -40°C to + 70°C |
| Storage Humidity | 10% to 95%, non-condensing | 10% to 95%, non-condensing | 5% to 95%, non-condensing |

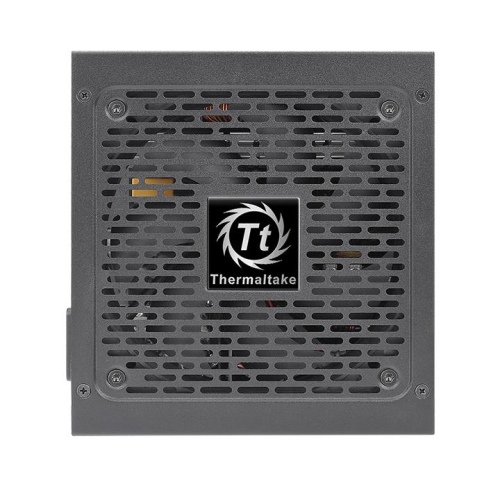

| COOLING SYSTEM | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/CB/TUV/ UL/ FCC/ BSMI |
| PCI-E 6+2pin | 2 |
| Marca | Thermaltake |
