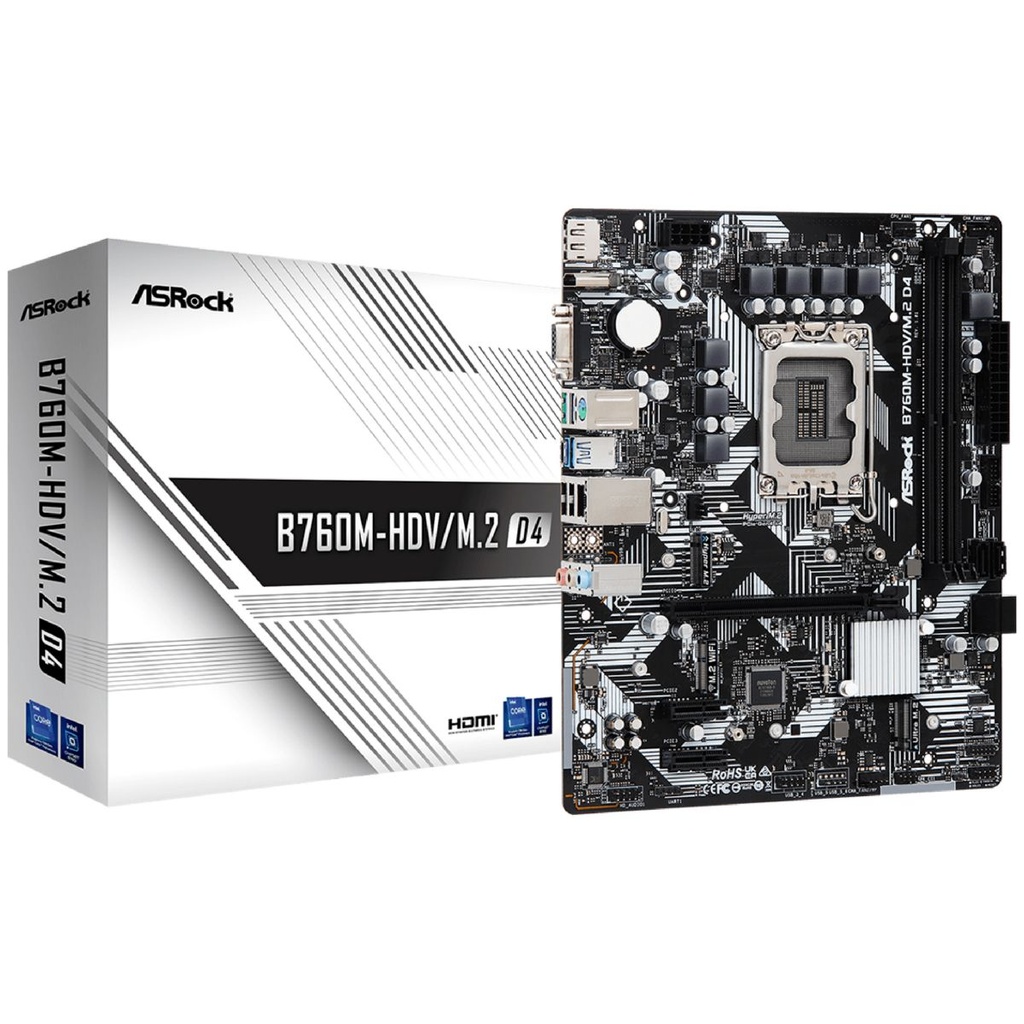

Motherboard Asrock B760m hdv/m.2 D4 | DDR4 | Socket S1700 | MicroATX
| Marca | Asrock |
| Part Number | 90-MXBL40-A0UAYZ 90-MXBL40-A0UAYAZ |
| CPU | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) |
| Chipset | B760 |
| Memoria | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Gráficos | - Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz |
| Audio | - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| LAN | - Gigabit LAN 10/100/1000 Mb/s |
| Formato | Micro ATX |
| Almacenamiento | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors** |
| RAID | Si |
| Marca | Asrock |
